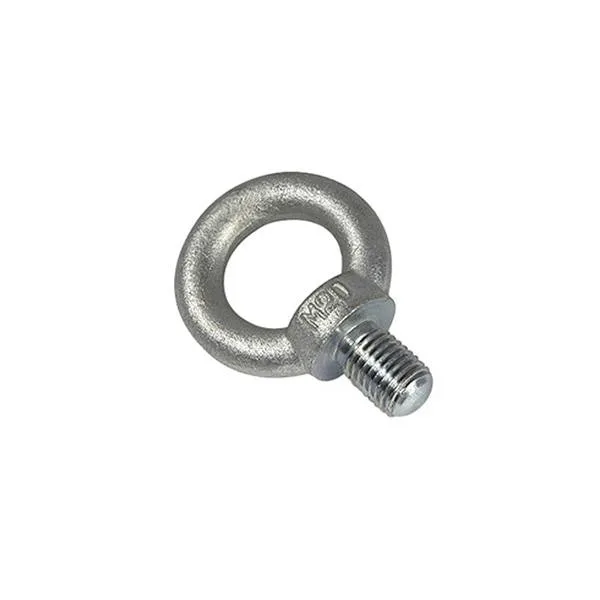

Eye Bolt DIN580
Eye Bolt DIN580

Eye Bolt DIN580 Metric Rated

SKU: SYEBD

$3.15 $3.62 incl. GST
Quantity

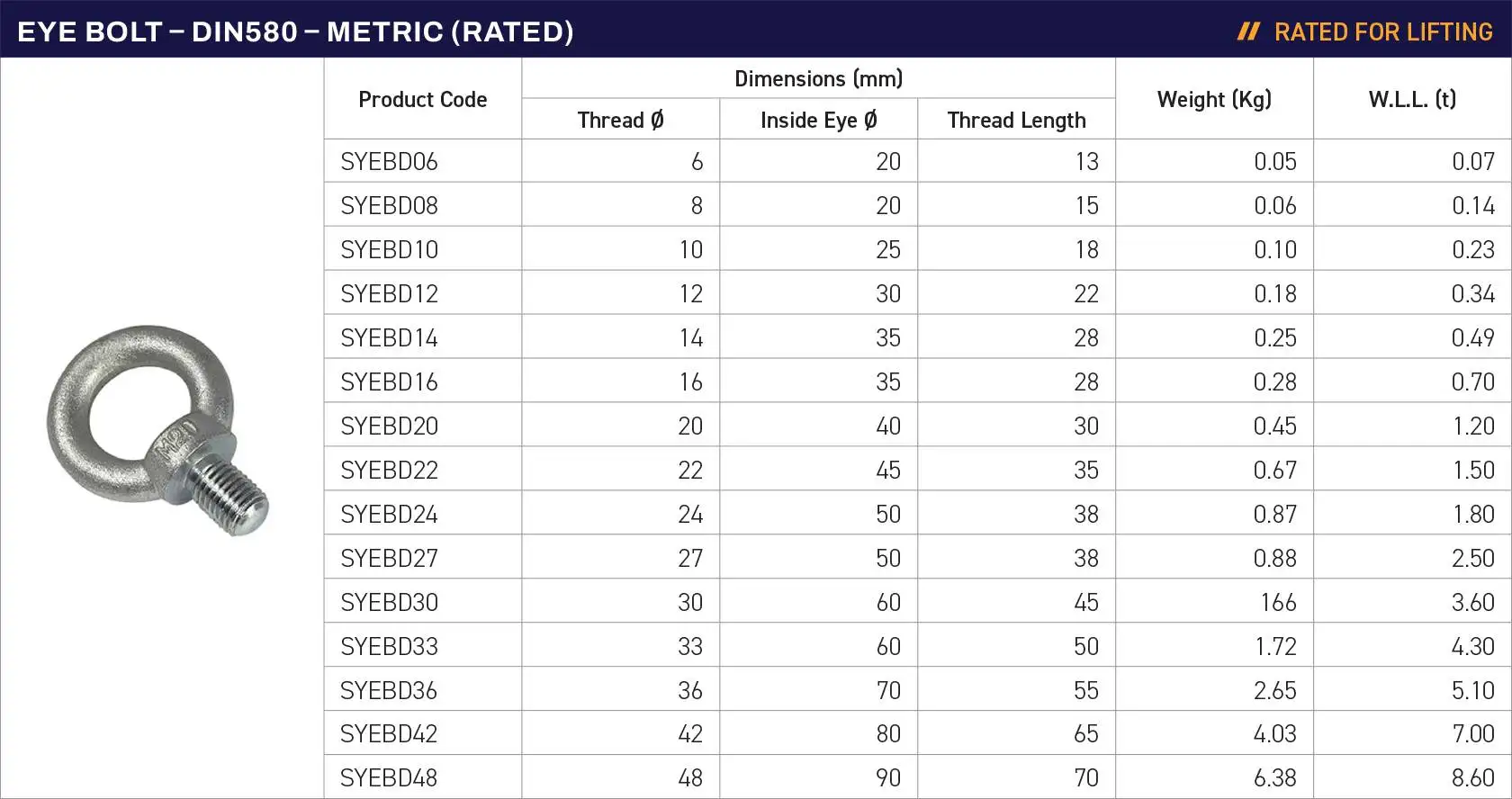

Specification

Information

Features:

  • Eye Bolts DIN580 and Eye Nut DIN 582 are generally used as a removable lifting point where a rated female thread or nut can be utilised, also can be used as a termination for Chain, Wire Rope and other assembles where required.
  • Made from C15 carbon steel with zinc plated finish, manufactured with a standard larger eye. Only available in metric thread sizes.
  • Conforms to DIN580 and DIN 582 marked with working load limit in tonne, nominal size in millimetre, quality grade, batch numbered and supplier identification. Proof tested to 2 x Working load limit and Minimum breaking force of 4 x Work load limit.
  • Test Certificate available on request.
